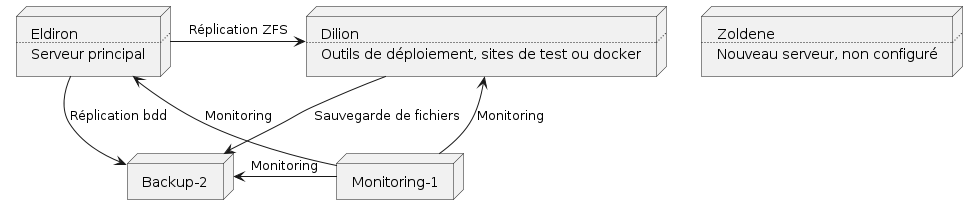

Schéma de l’infrastructure

/' https://plantuml.com/fr/deployment-diagram '/ @startuml skinparam svgLinkTarget _parent skinparam pathHoverColor green node Eldiron [ Eldiron /'[[http://plantuml.com]]'/ .... Serveur principal ] node "Monitoring-1" node "Backup-2" node Dilion [ Dilion .... Outils de déploiement, sites de test ou docker ] node Zoldene [ Zoldene .... Nouveau serveur, non configuré ] "Monitoring-1" -up-> Eldiron : Monitoring "Monitoring-1" -le-> "Backup-2" : Monitoring "Monitoring-1" -up-> Dilion : Monitoring Eldiron -do-> "Backup-2" : Réplication bdd Eldiron -> Dilion : Réplication ZFS Dilion -do-> "Backup-2" : Sauvegarde de fichiers /'node Eldiron { node database { port "tcp/3306" component mysqld port "tcp/5432" component postgresql } node web { port "tcp/production:443" port "tcp/production:80" component "httpd-production" port "tcp/integration:443" port "tcp/integration:80" component "httpd-integration" port "tcp/main:443" port "tcp/main:80" component "httpd-main" } node dns { port "udp:53" port "tcp:53" component named } node xmpp { port "tcp/4369" port "tcp/5280" component ejabberd } node vpn { port "tcp/1194" port "tcp/655" component tincd } node mail { port "tcp/25" port "tcp/465" port "tcp/587" component postfix port "tcp/995" port "tcp/993" component dovecot } node authentication { port "tcp/636" component openldap } }'/ @enduml
